Product Details:

Place of Origin: Zhejiang, China
Brand Name: GHAO
Model Number: GH-E036

Payment & Shipping Terms:

Minimum Order Quantity: 50 pieces
Price: $700.00/pieces 50-99 pieces
Packaging Details: 85% SKD , one bike one carton
Supply Ability: 10000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information
Gears: 7 Speed Range Per Power: 31 - 60 Km
Frame Material: Aluminum Alloy Wheel Size: 20", 20 Inch
Max Speed: 30-50Km/h Voltage: 48V
Power Supply: Lithium Battery Braking System: Disc Brake
Torque: 30-50 Nm Charging Time: 1~3 Hours
Motor Position: Rear Hub Motor Battery Position: Down Tube
Battery Capacity: 16.7 Ah Tire: Kenda
Stem: Alloy Handlebar: Folding
Rim: Alloy Brake: Hydraulic Brake
Gear: Shimano Motor: Bafang
Port: Ningbo Or Shanghai

Product Description


Product Description

Main parts:

     Electric system:

Frame		  Aluminum alloy Motor 48V250W-500W-750W -1000W motor

Fork		  aluminum alloy High speed & gear motor

Tire		 Kenda  20*4.0 Battery 48V10AH 17AH 21 each AHLithium battery

Rim		 Double wall , alloy rim Over 800 recharged times

Brake		 Disc brakes Controller KT brand

Handlebar 		 Alunimum alloy  PAS and Throttle

Derailleur		 7 speed, SHIMANO brand Charger 4-6 hours

Crank		 52T

Chain		 Anti-rust, KMC brand Display LED, 3-speed Level, power & light switch

Light 		 LED for front and rear LCD, 5-speed level, more functions

Brake lever		   With power cut off Perferomance :

Pedals		   Aluminum alloy & Plastic  Max speed  25-40KM/H

BBS		  Bottom Bracket Axle   Range 45-70KM per full charging

Saddle 		 Soft & comfortable   N.W/ G.W.   34kg / 38kg

Kickstand		   Aluminum alloy   Max loading  120KG





1000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 01000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 11000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 21000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 31000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 41000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 51000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 6



Another model of dual batteries bike:

1000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 7

Lady bafang wheel model:

1000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 8

Full suspension spokes wheel E fat bike:

1000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 91000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 101000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 11





26 inch fat tire e bike mid-motor:

1000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 121000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 13



Fat tire electric tricycles:

1000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 141000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 15

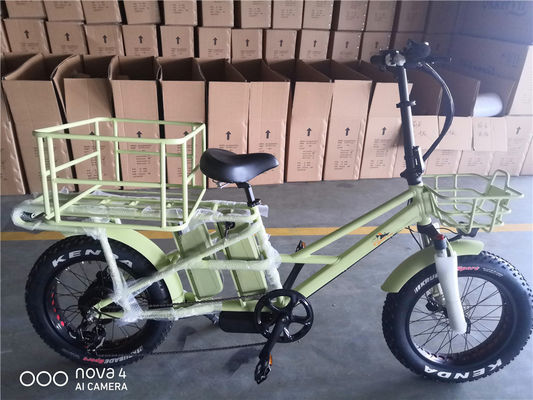

85% assemble:



1000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 16



Package:

1000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 17

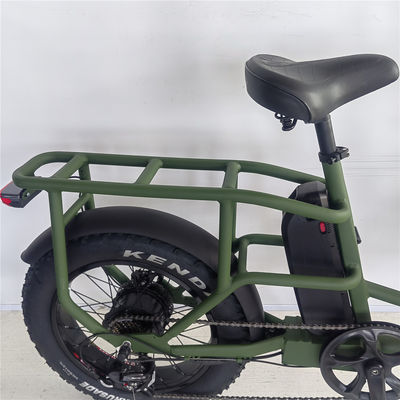

Bike with rear carrier:

1000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 18



 20 inch lady E fat bike:1000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 19

26 inch lady E fat bike:

1000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 20





 Mid drive motor E bike:

1000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 21

E fat e trike tricycle:

1000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 221000W 48V 34A Folding Frame Electric Cargo Bike with 20 Inch Fat Tires and Rear Carrier 23
