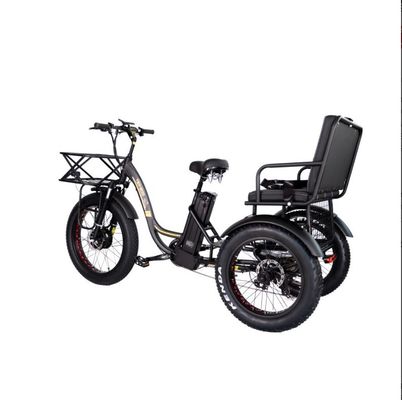

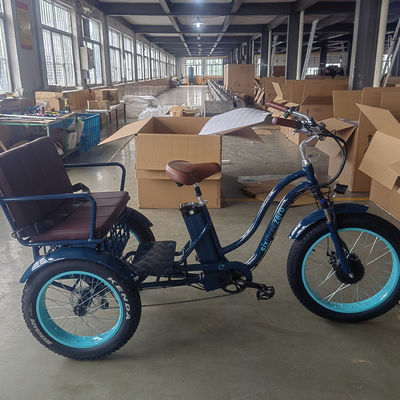

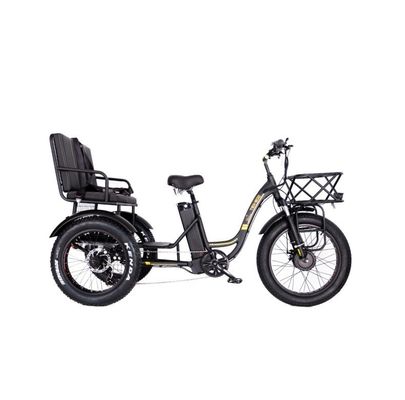

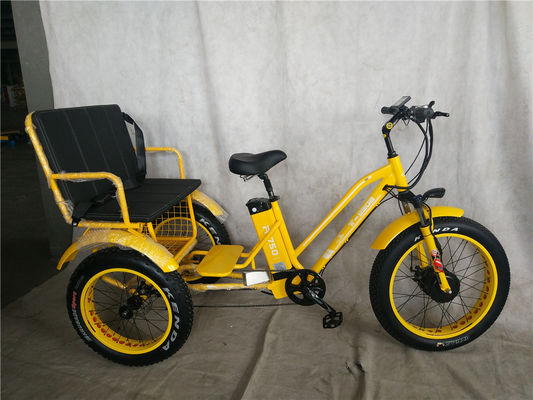

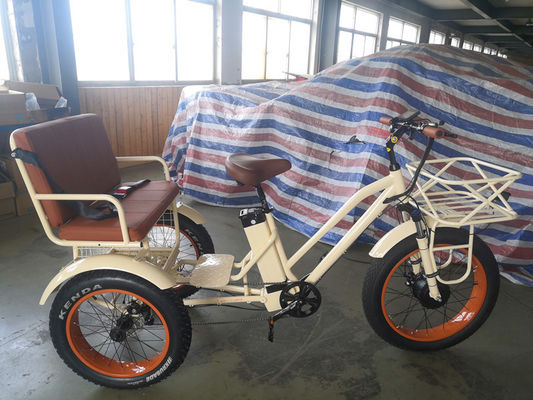

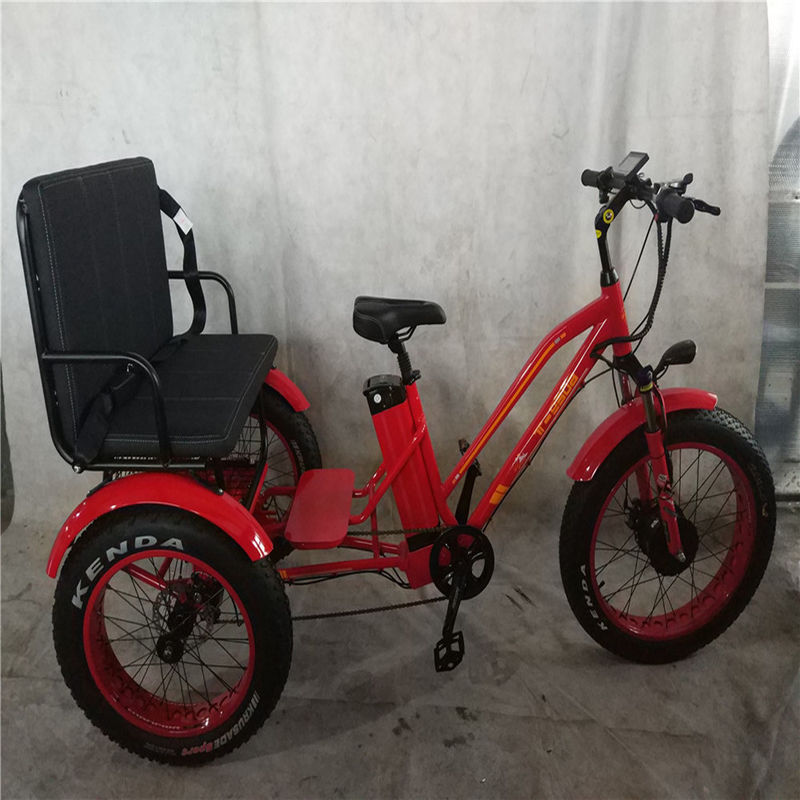

750W Central Motor Fat Tire Electric Rickshaw with Aluminum Carrier and Passenger Seat
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | GHAO |
| Model Number: | GH-E022 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 pieces |
|---|---|
| Price: | $1,450.00/pieces 20-29 pieces |
| Packaging Details: | 85% SKD , one bike one carton |
| Supply Ability: | 10000 Piece/Pieces per Month |
|
Detail Information |
|||
| Gears: | 6 Speed | Range Per Power: | 31 - 60 Km |
|---|---|---|---|
| Frame Material: | Aluminum Alloy | Wheel Size: | 26" |
| Max Speed: | 30-50Km/h | Voltage: | 48V |
| Power Supply: | Lithium Battery | Braking System: | Disc Brake |
| Torque: | 50-60 Nm | Charging Time: | 1~3 Hours |
| Motor Position: | Central Motor | Battery Position: | Down Tube |
| Battery Capacity: | 16.7 Ah | Tire: | Kenda 24*4.0 |
| Display: | Bafang | Sensor: | Bafang |
| Brake: | Hydraulic Disc Brake | Crank: | Bafang |
| Controller: | Bafang | Motor: | Bafang 750W |
| Battery: | Lithium | Carrier: | Aluminum |
| Port: | Ningbo Or Shanghai | ||
Product Description
Product Description
Main parts: | Electric system: | ||
Frame | Aluminum alloy | Motor | Bafang 750W motor |
Fork | aluminum alloy | 7 gear motor | |
Tire | Kenda 24*4.0 | Battery | 21 AHLithium battery, Samsung |
Rim | Double wall , alloy rim | Over 800 recharged times | |
Brake | Tektro hydaulic Disc brakes | Controller | Bafang brand |
Handlebar | Alunimum alloy | PAS and Throttle | |
Derailleur | 7 speed, Bafang | Charger | 1-3hours |
Crank | Bafang | ||
Chain | Anti-rust, KMC brand | Display/ Sensor | Bafang |
Light | LED for front and rear | Bafang | |
Brake lever | With power cut off | Perferomance : | |
Pedals | Aluminum alloy & Plastic | Max speed | 25-40KM/H |
BBS | Bottom Bracket Axle | Range | 45-70KM per full charging |
Saddle | Soft & comfortable | N.W/ G.W. | 43kg / 33kg |
Kickstand | Aluminum alloy | Max loading | 350KG |
Mass production:
Rear motor 26 inch:
Full suspension E fat bike: 20 inch
20 inch lady E fat bike:
26 inch lady E fat bike:
E fat tricycle:
